Earth Link Boxes

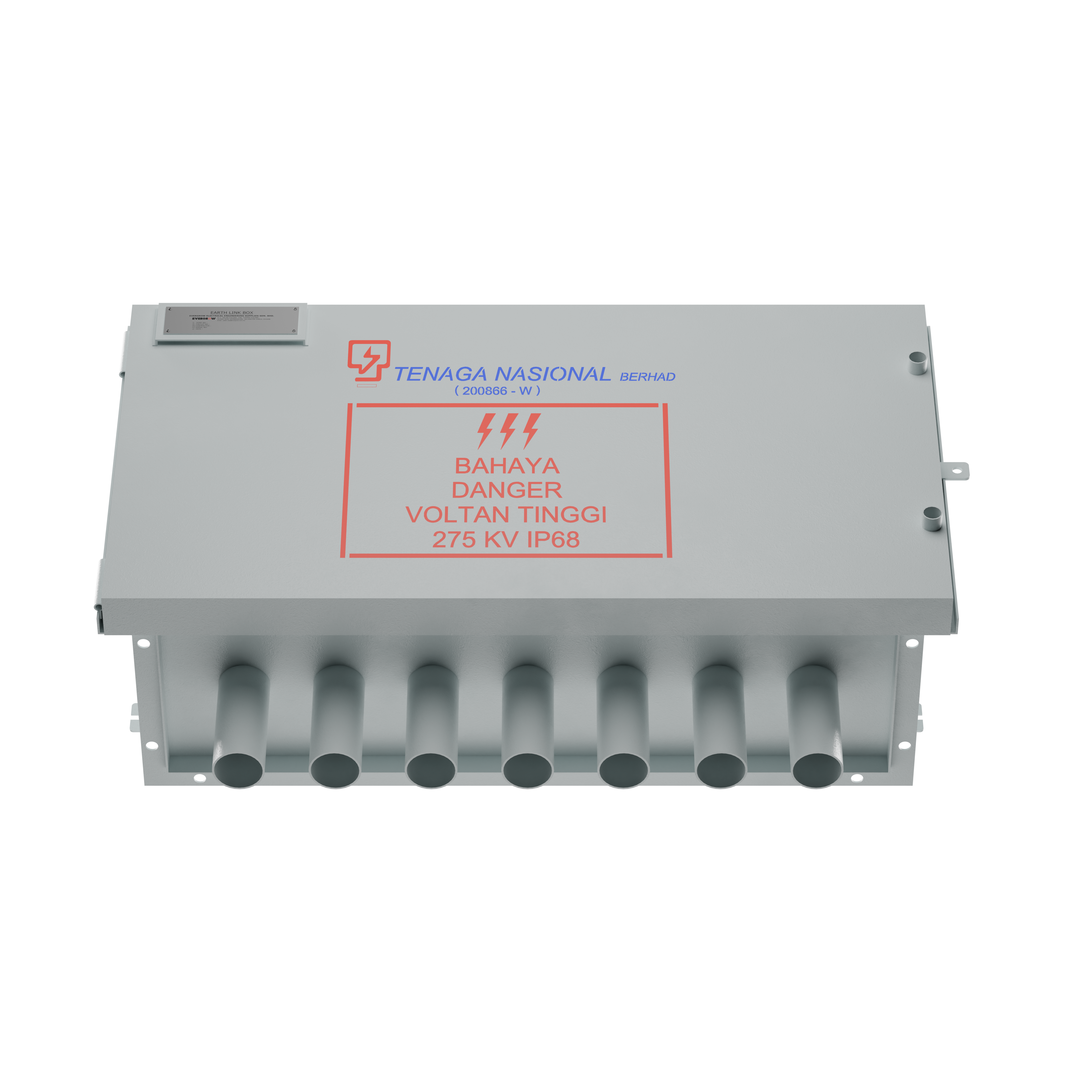

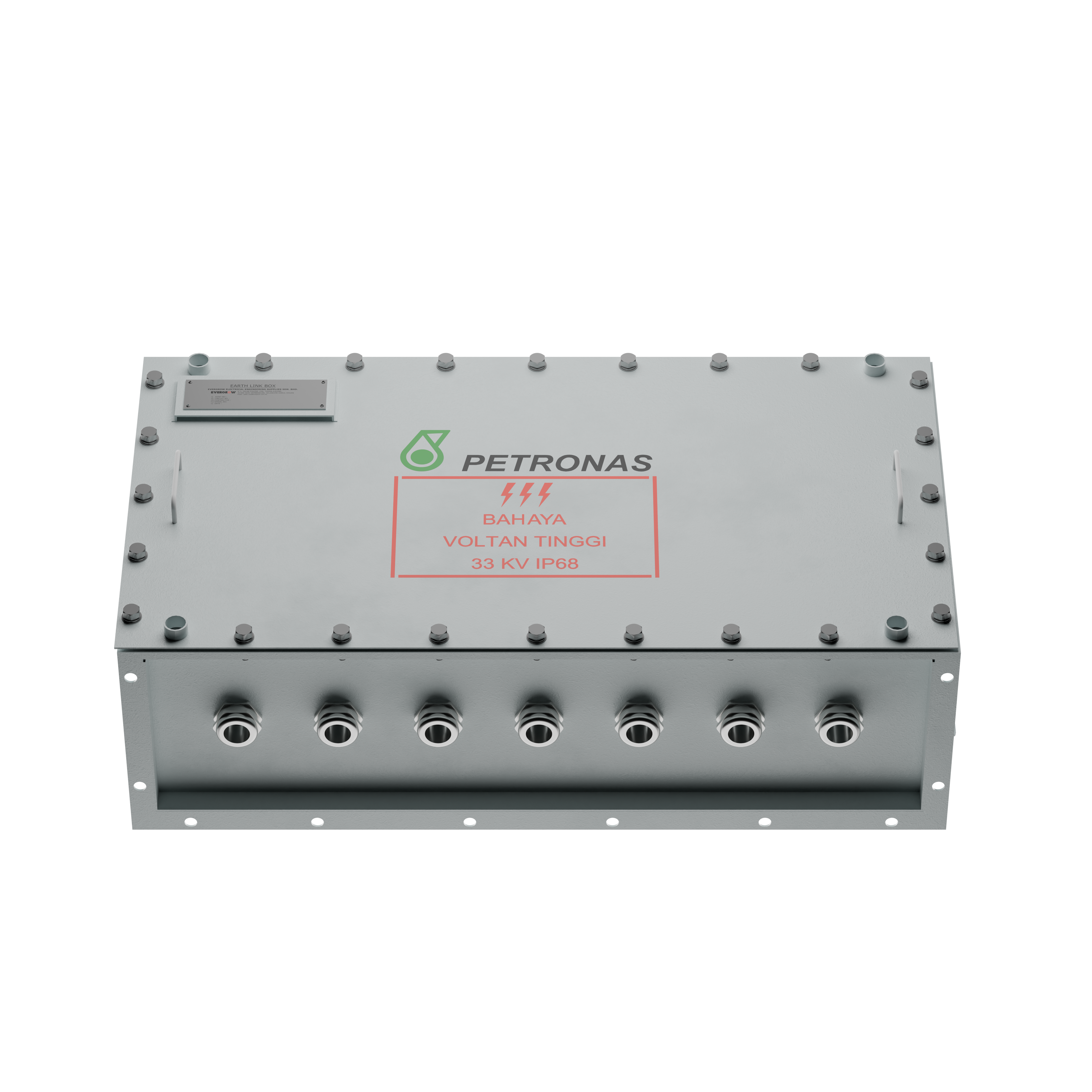

Earth Link Box
IP68 sealed · double-door · SUS304
Expand
Voltage
Configuration
Bonding
View
Get this product
Material
2 mm SUS304 stainless double-door enclosure · Cu busbar 50×6 mm · SMC insulator · IP68 cable gland · 300 mm cable lugs · 5 mm high-heat EPDM gasket · hexagon busbar support · SUS M10 bolts · anti-theft screw
Certification
31.5 kA RMS / 3 s · 69.30 kA peak · IP68 (IEC 60529)
Configuration

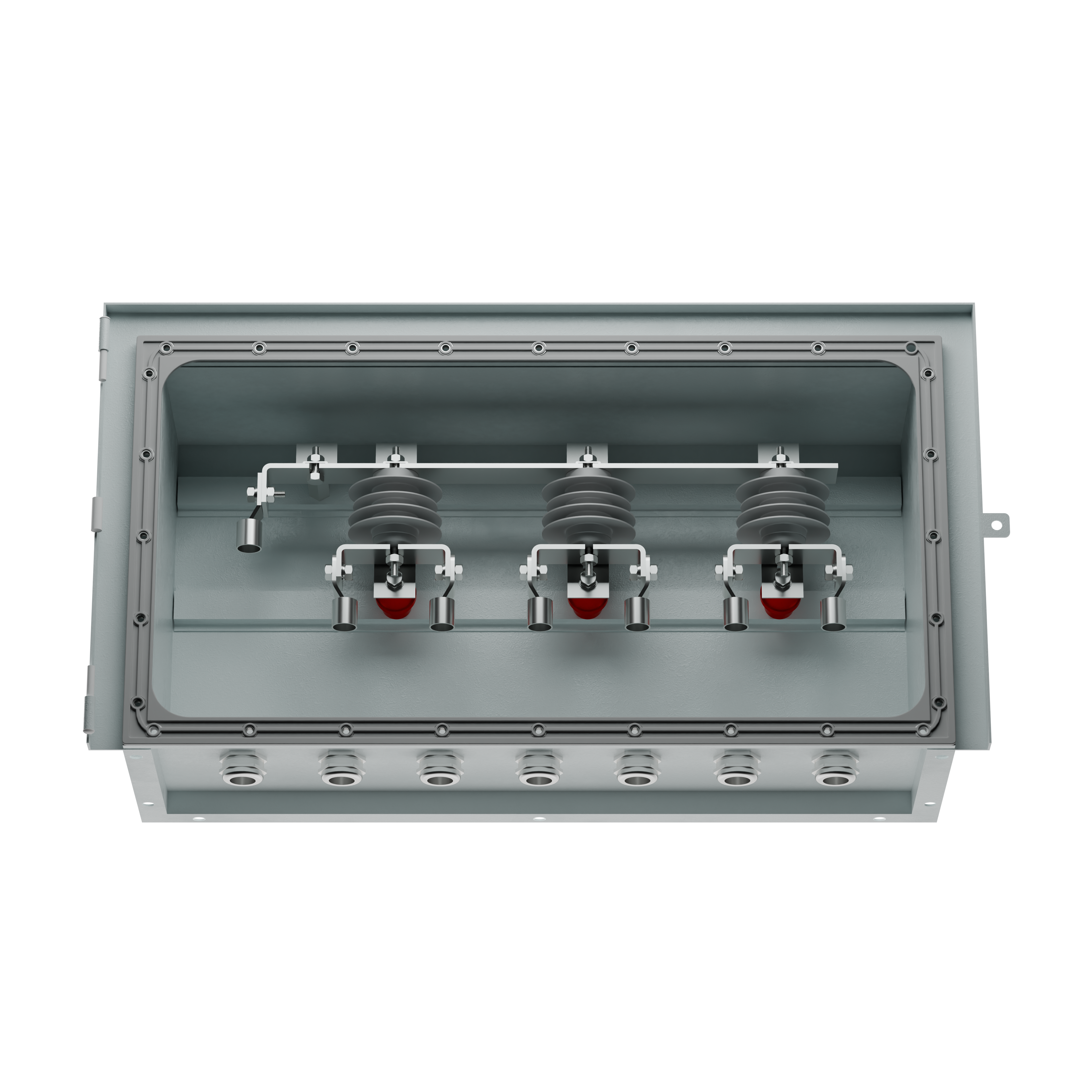

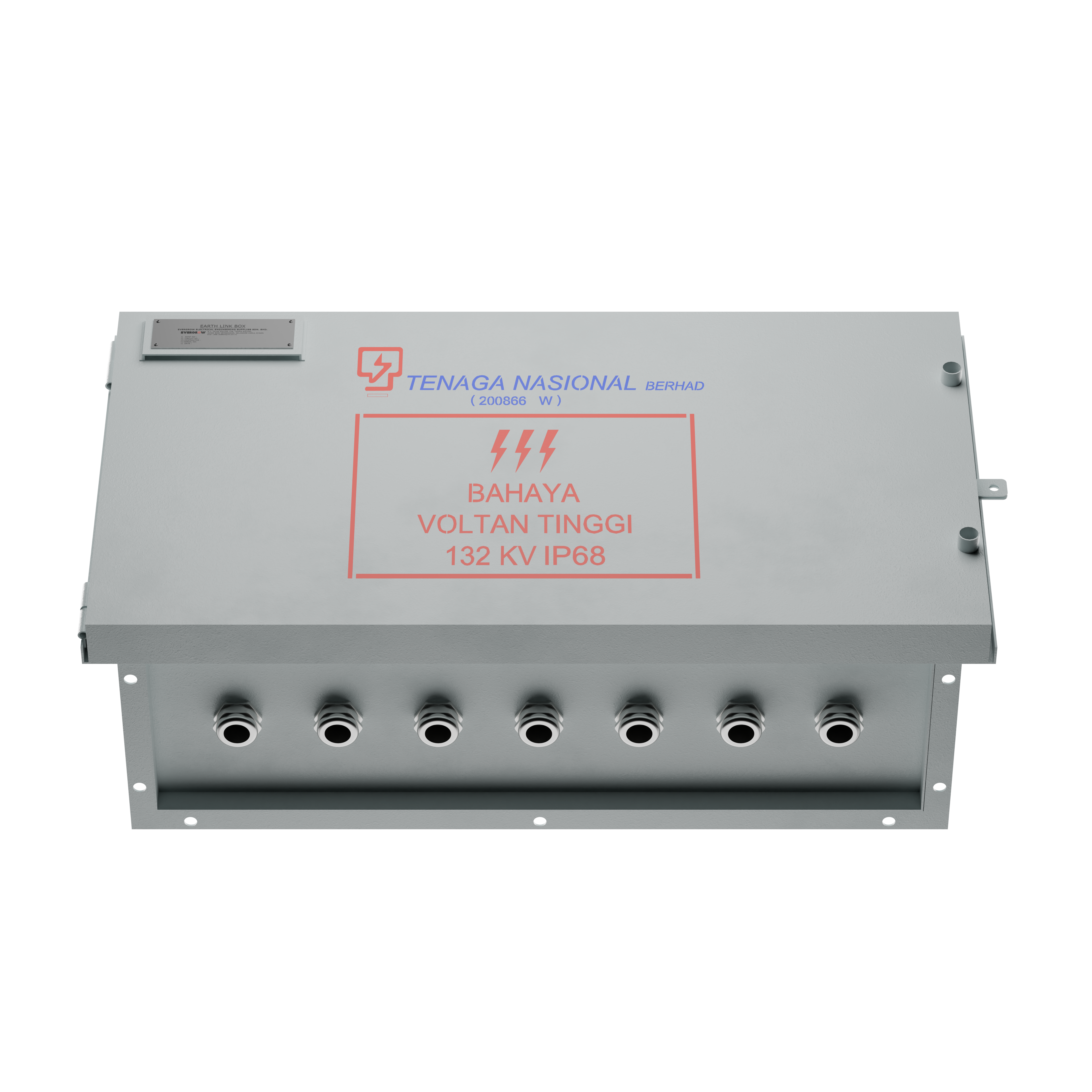

132 kV · 6+1 · SVL bonding · SIEMENS 3EK8-060 (6 kV)
Test results
DY241821 · QDIN2509001886PL01
| Test | Report | Result |
|---|---|---|
| IP rating | DY241821 | IP68 (IEC 60529) · met |
| Coating | QDIN2509001886PL01 | Pass |
Construction
Bill of materials — 132 kV
- 2 mm SUS304 stainless double-door enclosure
- Cu busbar 50×6 mm
- SMC insulator
- IP68 cable gland
- 300 mm cable lugs
- 5 mm high-heat EPDM gasket
- hexagon busbar support
- SUS M10 bolts
- anti-theft screw
- SIEMENS 3EK8-060 (6 kV) SVL
- Finished in TNB Pantone Cool Grey 4C / SESCO ash grey, with utility logo
Test-coverage matrix
Type-test status by configuration.
| Voltage | 3+1 SVL | 6+1 SVL | 3+1 Solid | 6+1 Solid |
|---|---|---|---|---|
| 33 kV | On request | On request | On request | On request |
| 132 kV | On request | On request | ||
| 275 kV | On request | On request |
